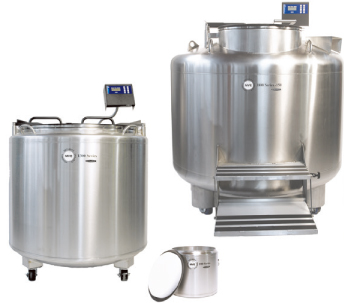

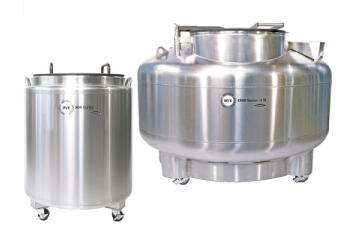

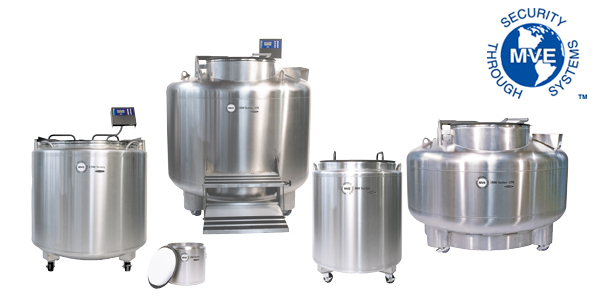

The MVE Stock Series provides the ultimate in security for the breeding industry and are primarily used to store semen and embryos. The freezers are designed for pull and pack shipment, with a wide neck opening for easy access. Although engineered for full liquid storage, the MVE Stock Series can be operated in vapor using the available vapor storage accessory packs.
- ●Wide neck opening
- ●Lowest liftover height
- ●Largest LN2 capacity
| MVE 103 |
MVE 808 |
MVE 816P- 2T-190 |
MVE 1318 |
MVE 1842P-150 |

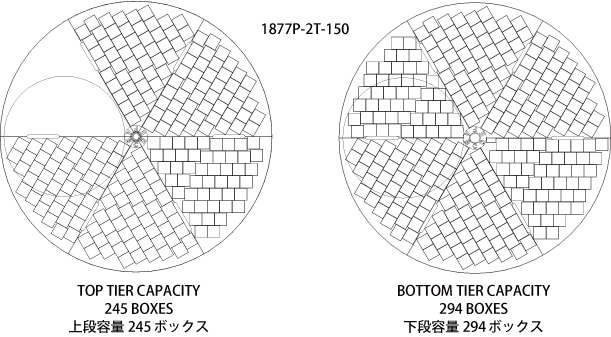

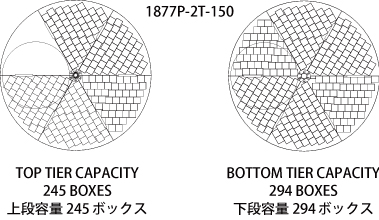

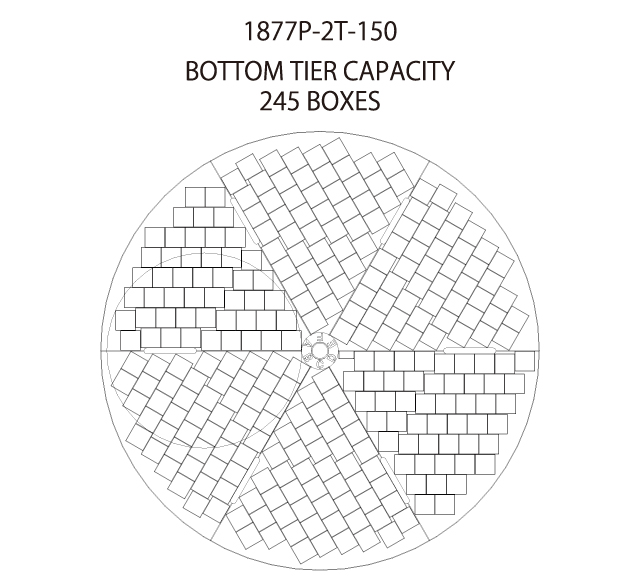

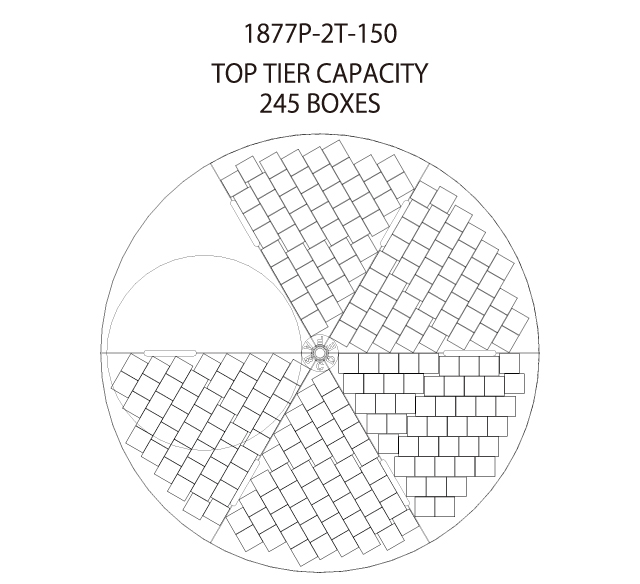

MVE 1877P- 2T-150 |
|
| Maximum Storage Capacity | ||||||
|---|---|---|---|---|---|---|
| 1.2 & 2 ml Vials (Internally Threaded) | - | 11700 | 10500 | 20800 | - | - |
| Number of Racks 100 cell boxes | - | 12 | 105 | 24 | - | - |
| Number of Racks 25 cell boxes | - | 4 | - | 8 | - | - |
| Total Number of Racks | - | 16 | 21 | 32 | - | - |
| High Security Straw Capacity (0.5 ml) | 7728 | 37296 | 31584 | 76104 | - | 347424 |
| Number of Canisters (73 mm) | 23 | 74 | 94 | 151 | - | 517 |
| Goblets/Canister : Straws/Goblet | 2:168 | 3:168 | 2:168 | 3:168 | 2:168 | 4:168 |
| Number of SUC-1 canisters (2.5”x2.5”x11) | 22 | 61 | 115 | 129 | 294 | 539 |
| Number of 1.2 ml vials on canes | 3168 | 8784 | 16560 | 18576 | 42336 | 77616 |
| Number of 2.0 ml vials on canes | 1760 | 4880 | 9200 | 10320 | 23520 | 43120 |
| Number of 1/2 cc straws 10/cane | 6820 | 18910 | 35650 | 39990 | 91140 | 167090 |
| Performance | ||||||
| LN2 Capacity L | 39 | 230 | 381 | 482 | 915 | 1400 |
| Unit Dimensions | ||||||
| Neck Opening in. (mm) | 16.0 (406) |
25.0 (634) |
12.5 (317) |
35.5 (901) |
25.0 (635) |
25.0 (635) |
| Usable Internal Height in. (mm) | 12.0 (305) |
22.0 (558) |
13.0 (330) per level |
18.8 (479) |
13.0 (332) |
13.0 (330) per tray |
| Inner Diameter in. (mm) | 16.00 (406) |
28.30 (720) |
28.70 (728) top tray 27.70 (702) bottom |
39.60 (1007) |
56.25 (1429) |
56.25 (1429) |
| Overall Height in. (mm) | 16.4 (415) |
42.8 (1088) |
50.0 (1271) |
47.0 (1193) |
44.3 (1127) |
58.2 (1479) |
| Door Width Requirement** in. (mm) | 18 (457) |
31 (787) |
32 (813) |
42 (1067) |
60 (1524) |
60 (1524) |
| Weight Empty lb. (kg) | 48 (22) |
250 (114) |
475 (215)est. |
469 (213) |
1167 (530) |
1600 (726) |
| Weight Liquid Full*lb. (kg) | 117 (53) |
660 (300) |
1155 (524)est. |
1328 (602) |
2798 (1270) |
4094 (1857) |
* Without inventory
** Minimum width required for vessel to pass through opening. Footprint may vary. Contact Tech
Service for detailed drawings.
